.0003 to 30.0

.0003 to 30.0
Part # CMM2030-BD
Key features

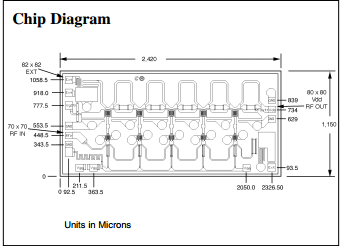

Small Size: 43 x 92 mils
High Gain: 12 dB Typical
P1dB = +18 dBm, Typical
30 kHz to 30 GHz Bandwidth
Low Gain Ripple: 1.0 dB pp Typical
Sub 0.25 Micron Ion/Implant Process

Low DC Power Cónsumption


The CMM2030-BD is a precision GaAs MMIC,
medium power amplifier and is part of Celeritek’s family of
WideFiber™ products.
The CMM2030-BD optical driver amplifier gives
fiber optic system designers a unique combination of wideband
frequency coverage, along with a flat response and very low
internal jitter. It is a precision Ion/Implanted GaAs RF IC medium power amplifier with +23 dBm @ P1dB (Typ). It operates
from 30 kHz to 20 GHz with a 10 dB linear gain. Low internal
jitter makes it especially well suited for high speed digital data
applications. Typical output voltage is 7.5 V peak-to-peak.
It is an excellent choice for driving Lithium Niobate
external optical modulators, where a high extinction ratio is
necessary. Targeted for OC-192 and other high speed applications, the bit rate can be as high as 15 Gb/s. The bias voltage
can be adjusted to reduce the output voltage as needed.
CMM2030-BD amplifiers are shipped in Gel Pack

Frequency (GHz) .0003-30.0
Gain (dB) 12.0
Gain Flatness (dB) +/-0.5
Noise Figure (dB) 4.5
Output IP3 (dBm) +18.0
OIP3 (dBm) +31.0
Bias (mA @ V) 100 @ 5.0
Package () DIE
Markets () I / D
Typical Applications

Input Stage Driver for LiNb03 Modulator Driver Amplifier @ OC-192

Medium Power Linear Gain Block for brỏadband Sýstems

Receive Amplifier for OC-192
