0.05 to 6.0 GHz

0.05 to 6.0 GHz
Part # CMM6004-AH(@ 2 GHz)
Key features


❏ 0.25 to 6.0 GHz Frequency Range

❏ 41 dBm Output IP3

❏ 1.7 dB Noise Figure

❏ 18.5 dB Gain

❏ 23 dBm P1dB

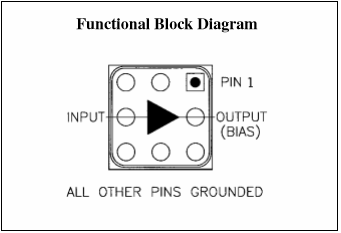

❏ LGA Package

❏ Single Power Supply

❏ Single Input Matching


The CMM6004-AH is a high dynamic range amplifi- er designed for applications operating within the 0.25 to 6.0 GHz frequency range. It is an ideal solution for numerous transmit and receive functions in wireless local loop (WLL) and UNII applications where high linearity is required. The amplifier has the flexibility of being optimized for a number of wireless applications. It is an ideal solution when used as a driver amplifier in applications including cel- lular and PCS (personal communications service) operating from 0.8 to 2.2 GHz; MMDS (multichannel multipoint distrib-
ution systems) operating from 2.2 to 2.7 GHz; WLAN (wire- less LAN) operating at 2.4 GHz; WLL (wireless local loop) operating at 3.5 GHz; and HiperLAN (high performance LAN) and U-NII (unlicensed national information infrastruc- ture) operating from 5.0 to 6.0 GHz. The CMM6004-AH is packaged in a low-cost, space efficient, Land Grid Array (LGA) package which provides excellent electrical stability and low thermal resistance. All devices are 100% RF and DC tested. With single input match- ing the part simplifies design by keeping board space and cost to a minimum.


Frequency (GHz) 0.05-6.0
P1dB (dBm) +23.0
Gain (dB) 15
Icc (mA) 150
Output IP3 (dBm) +41.0
Voltage (V) +3.0 to +5.0
NF (dB) 1.7
Package () -AH (3x3 mm)
Markets () I / S / P / D
Typical Applications
  • Application Circuit (836 MHz)
    Typical Performance (50 Ohm System)
    Frequency 836 MHz
  • Gain 18 dB Input
  • Return Loss -23 dB
  • Output Return Loss -14 dB
  • OIP3 40 dBm
  • Noise Figure 1.75 dB
  • Bias Vds = 5V, Id = 175 mA
  • Applications

    ❏ Wireless Local Loop Transmit and Receive

    ❏ UNII Transmit and Receive

    ❏ Dual Band 802.11 WLAN
