0.25 to 3.0 GHz High Dynamic Amplifier

0.25 to 3.0 GHz High Dynamic Amplifier
Datasheet
S-Parameters
Request More Information
Part # CMM6004-SC

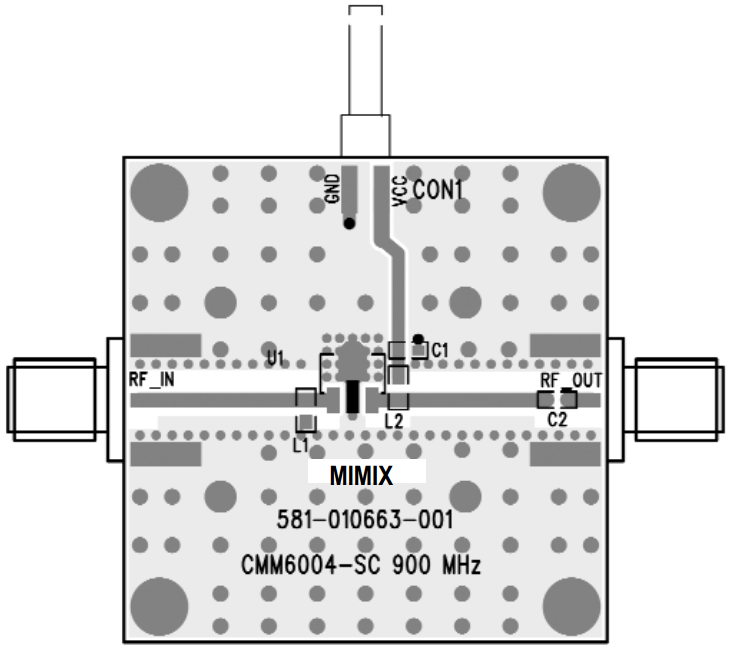

Preview
Key features
  • ❏0.25 to 3.0 GHz Frequency Range
    ❏41 dBm Output IP3
    ❏2.1 dB Noise Figure
    ❏14.5 dB Gain
    ❏23.5 dBm P1dB
    ❏SOT-89 SMT Package
    ❏Single Power Supply
    ❏+3V to +5V Voltage Rail
Description

The CMM6004-SC is a high dynamic range amplifier designed for applications operating within the 0.25 to 3.0 GHz frequency range. It is an ideal solution for transmit and receive functions where high linearity is required. The amplifier has the flexibility of being optimized for a number of wireless applications. The combination of low NF and high IP3 at the same bias point make it an ideal transmit or receive solution when used in applications including cellular and PCS (personal communications service) operating from 0.8 to 2.2 GHz; MMDS (multichannel multipoint distribution systems) operating from 2.2 to 2.7 GHz; and WLAN (wireless LAN) operating at 2.4 GHz. The CMM6004-SC is packaged in a low-cost, space efficient, surface mount SOT-89 package which provides excellent electrical stability and low thermal resistance. All devices are 100% RF and DC tested.

Specification
Frequency (GHz) 0.05-3.0
P1dB (dBm) +23.0
Gain (dB) 16.5
Icc (mA) 150
Output IP3 (dBm) +41.0
Voltage (V) +3.0 to +5.0
NF (dB) 1.8
Package () -SC (SOT-89)
Markets () I / S / P / D
Typical Applications
  • Wireless Local Loop Transmit and Receive
  • UNH Transmit and Receive
  • Dual Band 802.11 WLAN
  • WiMAX
  • LAN
