60 MHz to 3.0 GHz High Dynamic Amplifier

60 MHz to 3.0 GHz High Dynamic Amplifier
Part # CMM6001-SC
Key features

❏60 MHz to 3.0 GHz Frequency Range
❏38 dBm Output IP3
❏2.5 dB Noise Figure
❏12.3 dB Gain
❏20.5 dBm P1dB
❏SOT-89 SMT Package
❏Single Power Supply
❏+3V to +5V Voltage Rail


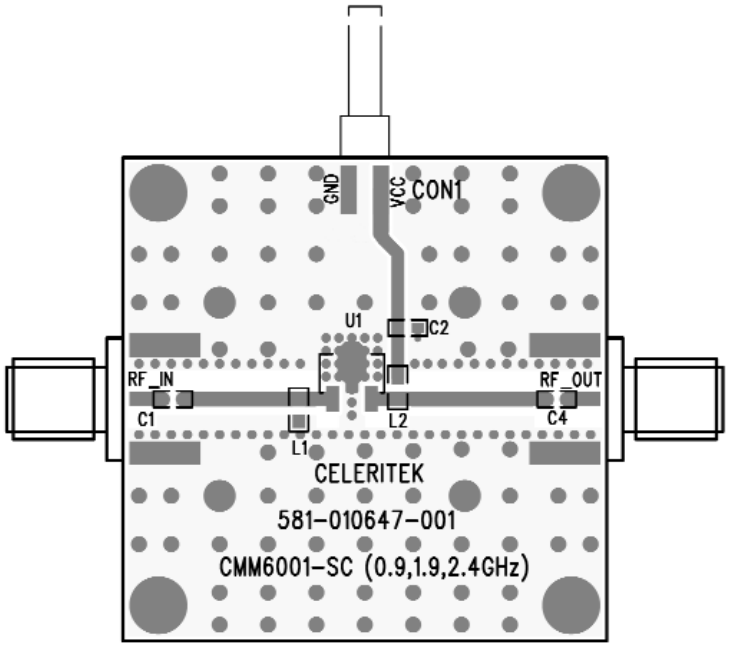

The CMM6001-SC is a high dynamic range amplifier designed for applications operating within the 60 MHz to 3.0 Hz frequency range. It is an ideal solution for transmit and receive functions where high linearity is required. The amplifier has the flexibility of being optimized for a number of wireless applications. The combination of low NF and high IP3 at the same bias point make it an ideal transmit or receive solution when used in applications including cellular and PCS (personal communications service) operating from 0.8 to 2.2 GHz; MMDS (multichannel multipoint distribution systems) operating from 2.2 to 2.7 GHz; and WLAN
(wireless LAN) operating at 2.4 GHz. The CMM6001-SC is packaged in a low-cost, space efficient, surface mount SOT-89 package which provides excellent electrical stability and low thermal resistance. All devices are 100% RF and DC tested.

Frequency (GHz) 0.05-3.0
P1dB (dBm) +20.5
Gain (dB) 12.5
Icc (mA) 75
Output IP3 (dBm) +37.0
Voltage (V) +3.0 to +5.0
NF (dB) 2.8
Package () -SC (SOT-89)
Markets () I / S / P / D
